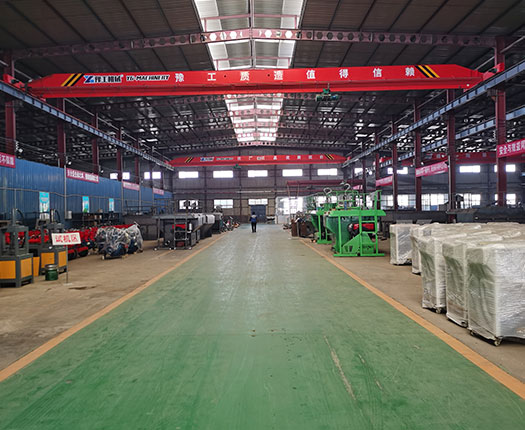

8000 square meter
Production Workshop
150 items
Corporate Honors
140 countries
Already Exported

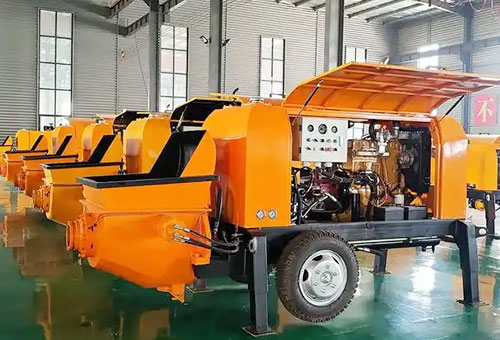

Engine Type: Diesel 4102 Type
Power: 22 kW
Working Efficiency: 8-12 m3/h
Working Pressure: 15 MPa
Aggregate Size: 0-2 cm
Vertical Distance: 40-50 m
Horizontal Distance: 80-100 m
Machine Weight: 900 kg
Engine Type: Diesel 4105 Type
Power: 37 kW
Working Efficiency: 13-15 m3/h
Working Pressure: 20 MPa
Aggregate Size: 0-3 cm
Vertical Distance: 20-60 m
Horizontal Distance: 50-150 m
Machine Weight: 1600 kg
Engine Type: Diesel 4108 Type
Power: 45 kW
Working Efficiency: 20-25 m3/h
Working Pressure: 23 MPa
Aggregate Size: 0-4 cm
Vertical Distance: 30-130 m
Horizontal Distance: 50-350 m
Machine Weight: 2200 kg
Engine Type: Diesel 6102 Type
Power: 55 kW
Working Efficiency: 30-35 m3/h
Working Pressure: 23 MPa
Aggregate Size: 0-4 cm
Vertical Distance: 30-150 m
Horizontal Distance: 50-500 m
Machine Weight: 2200 kg

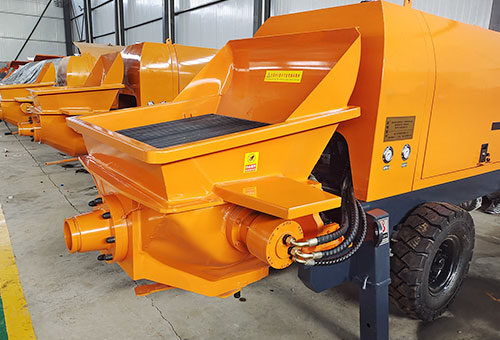

A high-angle hopper and high-pressure plunger pump achieve high pumping rates.
The three-circuit and dual-pump hydraulic system is stable, with forced air cooling for oil temperature control.
Supports high and low pressure switching, stepless displacement adjustment, and fully automatic lubrication to protect components.
PLC control simplifies circuitry, ensuring overall stable operation and guaranteed quality.
| Model | YG-10 | YG-20 | YG-30 | YG-40 | YG-50 |
| Work Efficiency | 8-10m³/h | 8-12m³/h | 13-15m³/h | 20-25m³/h | 30-35m³/h |
| Aggregate Size | 0-3cm | 0-2cm | 0-3cm | 0-4cm | 0-4cm |
| Vertical conveying Distance | 20-30m | 40-50m | 20-60m | 30-130m | 30-150m |
| Horizontal conveying Distance | 50-80m | 80-100m | 50-150m | 50-350m | 50-500m |
| Delivery pipe diameter | 80-100mm | 80-100mm | 80-125mm | 80-125mm | 80-125mm |
| Dimensions | 2100*890*1330 | 3200*1480*1600 | 3800*1600*1800 | 3880*1650*1680 | 4300*1600*1800 |

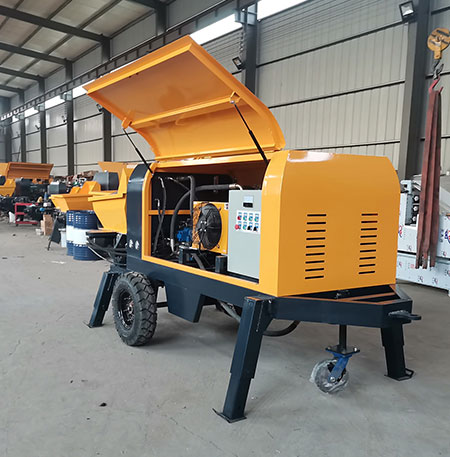

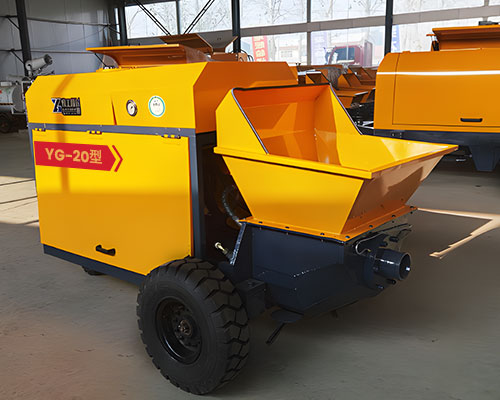

YG 20 Concrete Pump

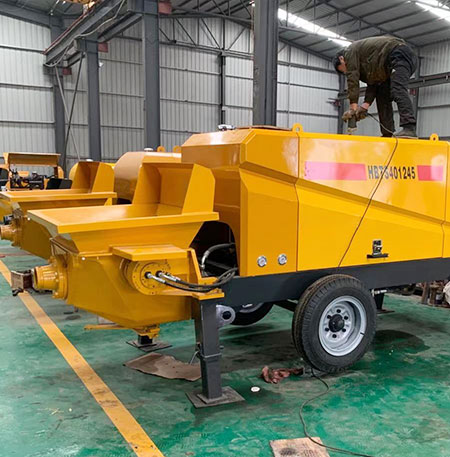

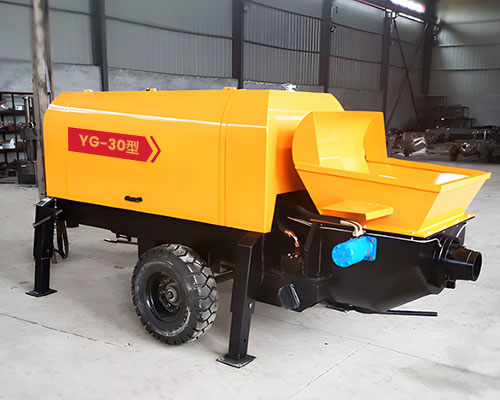

YG 30 Concrete Pump

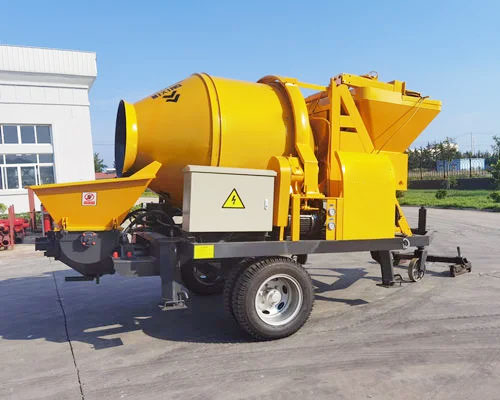

Trailer pump for concrete mixing

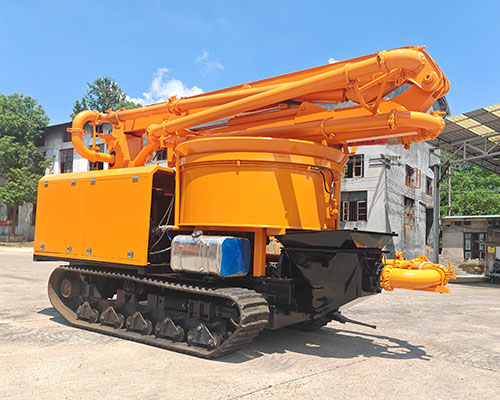

Tracked concrete mixer pump
